Formulas

A formula metric computes its value from other metrics on the same call. Use one to roll several focused metrics into a single score, or to turn them into one pass/fail gate:

{{Task Completion >= 2}} AND {{Instruction Follow >= 4}}        →  Boolean "Successful call"
({{Empathy}} + {{Resolution}} + {{Clarity}}) / 3                 →  Numeric "Quality score"

Formulas don’t call a model: they read values Roark has already recorded, so the same inputs always give the same result, and formulas aren’t billed like LLM Judge metrics.

Writing a Formula

A formula mixes metric references in {{double braces}} with operators.

References

Reference	Gives
`{{Empathy}}`	The metric’s value on the call, as a number
`{{Empathy >= 4}}`	A comparison: `1` when it holds, `0` when it doesn’t

In Studio you reference metrics by name. Studio stores them by id, so renaming a source metric doesn’t break the formula. Through the API, write the id: {{id:<metric definition id>}} and {{id:<metric definition id> >= 4}}. A plain reference reads Numeric, Count, and Scale values as they are, and a Boolean as 1 or 0. Compare a value inside the braces with:

Source type	Compare with	Example
Numeric, Count, Scale	`==` `!=` `>` `>=` `<` `<=` and a number	`{{Frustration Score <= 2}}`
Boolean	`==` `!=` and `TRUE` or `FALSE`	`{{Identity Verified == TRUE}}`
Classification	`==` `!=` and a label in quotes, matched without case	`{{Call Reason != "Wrong number"}}`

Text metrics can’t be used in a formula.

Operators

Operators	Use
`+` `-` `*` `/` and `( )`	Arithmetic and grouping
`AND` `OR` `NOT`	Combine comparisons
`TRUE` `FALSE`	`1` and `0`
`MIN(a, b, ...)` `MAX(a, b, ...)` `AVG(a, b, ...)` `ABS(a)`	Functions over references and numbers

Output

A formula returns a Numeric or a Boolean:

Numeric for arithmetic over plain references: ({{Empathy}} + {{Resolution}}) / 2.
Boolean for comparisons combined with AND, OR, and NOT. Any non-zero result is true.

Studio picks the output from the formula: all plain references make it Numeric, all comparisons make it Boolean. A formula that mixes the two is refused in Studio. For a Boolean, name the two outcomes with the True and False labels.

Rules

At least two metric references, up to 500 characters, with balanced parentheses.
Every source must record a value per call. Metrics that only record values per segment or turn, such as Response Time, can’t be referenced. To build on those, use a pattern or a threshold.
A formula can reference other formulas and thresholds, as long as they don’t loop back to it. Roark computes the sources first.

Creating a Formula

In Studio

Open Studio in Author mode and pick the Formula engine. The engine is locked after the first save.

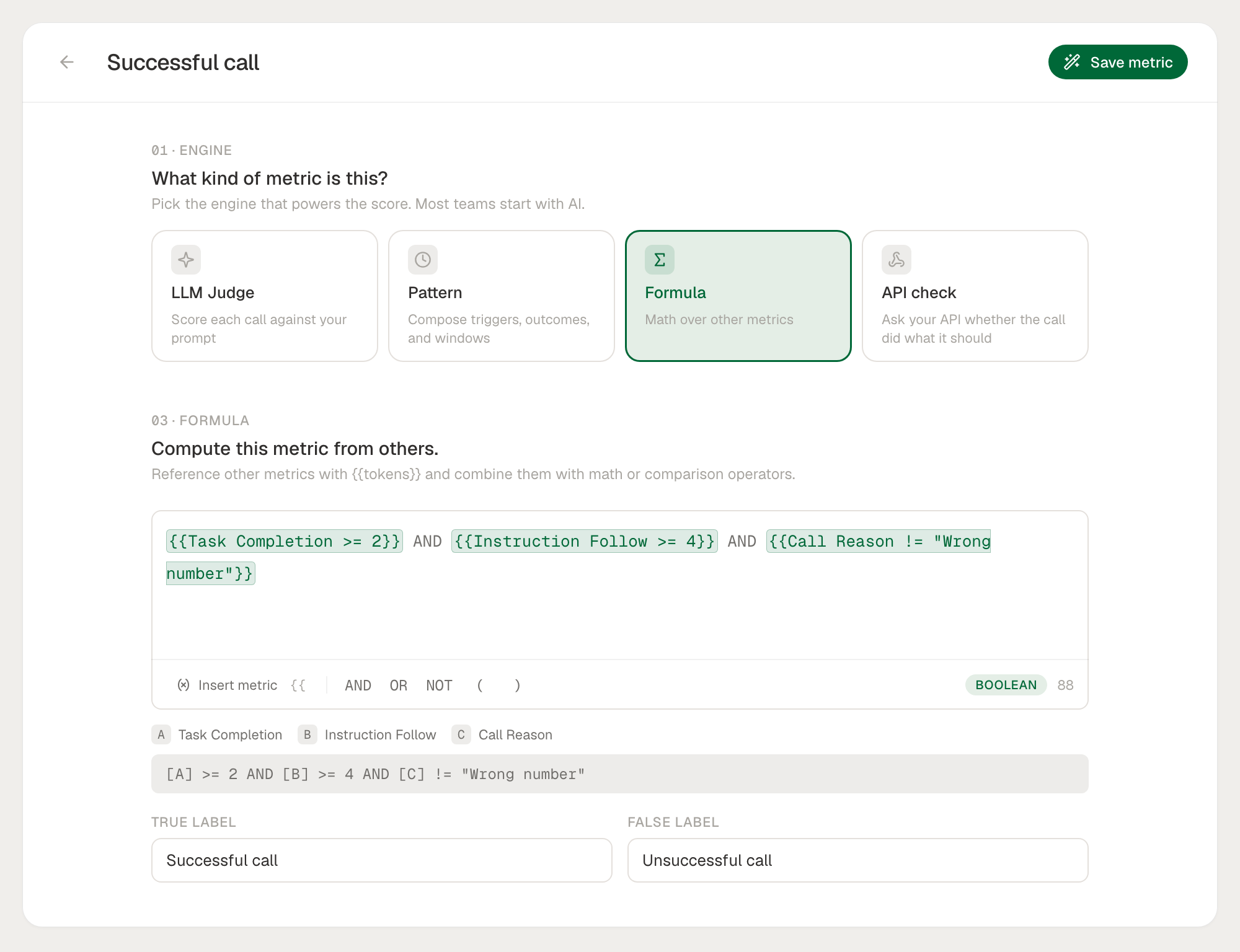

Studio Author mode with the Formula engine selected: the formula {{Task Completion >= 2}} AND {{Instruction Follow >= 4}} AND {{Call Reason != "Wrong number"}}, a toolbar with Insert metric and the AND, OR, NOT and parenthesis operators, a Boolean badge, the letter map A Task Completion, B Instruction Follow, C Call Reason, the preview [A] >= 2 AND [B] >= 4 AND [C] != "Wrong number", and the True and False labels Successful call and Unsuccessful call

Type {{ or click Insert metric to pick a source. Studio only offers metrics the formula can use. Click a comparison to change its operator or value. The toolbar shows the operators for the output you’re building, and the preview underneath shows the formula with each source as a letter.

With the SDK or API

Create the metric with calculationType: "FORMULA". List every metric the formula references in sources:

import Roark from '@roarkanalytics/sdk'

const client = new Roark({ bearerToken: process.env.ROARK_API_BEARER_TOKEN })

const { data: definitions } = await client.metric.listDefinitions()
const idOf = (slug: string) => definitions.find((d) => d.metricId === slug)!.id

const taskCompletion = idOf('task_completion')
const instructionFollow = idOf('instruction_follow')

const metric = await client.metric.createDefinition({
  calculationType: 'FORMULA',
  name: 'Successful call',
  outputType: 'BOOLEAN',
  formula: `{{id:${taskCompletion} >= 2}} AND {{id:${instructionFollow} >= 4}}`,
  sources: [{ sourceMetricDefinitionId: taskCompletion }, { sourceMetricDefinitionId: instructionFollow }],
})

import os
from roark_analytics import Roark

client = Roark(bearer_token=os.environ.get("ROARK_API_BEARER_TOKEN"))

definitions = client.metric.list_definitions().data
id_of = lambda slug: next(d.id for d in definitions if d.metric_id == slug)

task_completion = id_of("task_completion")
instruction_follow = id_of("instruction_follow")

metric = client.metric.create_definition(
    calculation_type="FORMULA",
    name="Successful call",
    output_type="BOOLEAN",
    formula=f"{{{{id:{task_completion} >= 2}}}} AND {{{{id:{instruction_follow} >= 4}}}}",
    sources=[
        {"source_metric_definition_id": task_completion},
        {"source_metric_definition_id": instruction_follow},
    ],
)

curl -X POST https://api.roark.ai/v1/metric/definitions \
  -H "Authorization: Bearer $ROARK_API_BEARER_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "calculationType": "FORMULA",
    "name": "Successful call",
    "outputType": "BOOLEAN",
    "formula": "{{id:<task_completion id> >= 2}} AND {{id:<instruction_follow id> >= 4}}",
    "sources": [
      { "sourceMetricDefinitionId": "<task_completion id>" },
      { "sourceMetricDefinitionId": "<instruction_follow id>" }
    ]
  }'

The response is the metric definition, with the expression and sources echoed back under formula.

Field	Type	Required	Description
`name`	string	Yes	Name of the metric (1-100 characters)
`outputType`	string	Yes	`NUMERIC` or `BOOLEAN`
`formula`	string	Yes	The expression, with `{{id:<uuid>}}` references (up to 500 characters)
`sources`	object[]	Yes	At least two: each `sourceMetricDefinitionId`, plus an optional `sourceVariantId` to read a variant of that metric
`slug`	string	No	Stable identifier. Generated from the name if omitted
`analysisPackageId`	string	No	Package to add the metric to. Defaults to your project’s Custom Metrics package

To change the expression later, PUT /v1/metric/definitions/{idOrSlug} with the new formula, and sources if they changed. The same request sets booleanTrueLabel and booleanFalseLabel on a Boolean formula. Each change creates a new metric version.

Formulas aren’t part of config as code yet. Create them in Studio or through the API.

Reading the Result

Each value carries its working in the reasoning, with every source’s value, for example:

Formula: {{Task Completion >= 2}} AND {{Instruction Follow >= 4}} → 1 (Task Completion >= 2 = true; Instruction Follow >= 4 = true)

When a source is missing

If any source has no value on the call, the formula records N/A, and the reasoning names the sources it couldn’t read. It never fills a missing source with zero. Add the sources to the same collector or run plan as the formula, so they run on the same calls. A formula that can’t produce a finite number, such as a division by a source that is 0, fails on that call instead of recording a value. Guard divisions with MAX({{Turns}}, 1).

What’s Next

LLM Judge

Write the focused metrics a formula combines

Thresholds

Turn a single metric into a pass/fail check

Patterns

Detect what follows what within a call

Collectors

Run the formula automatically on live calls
